Chemistry Analyzer

BM 300

BM 300

Chemistry Analyzer

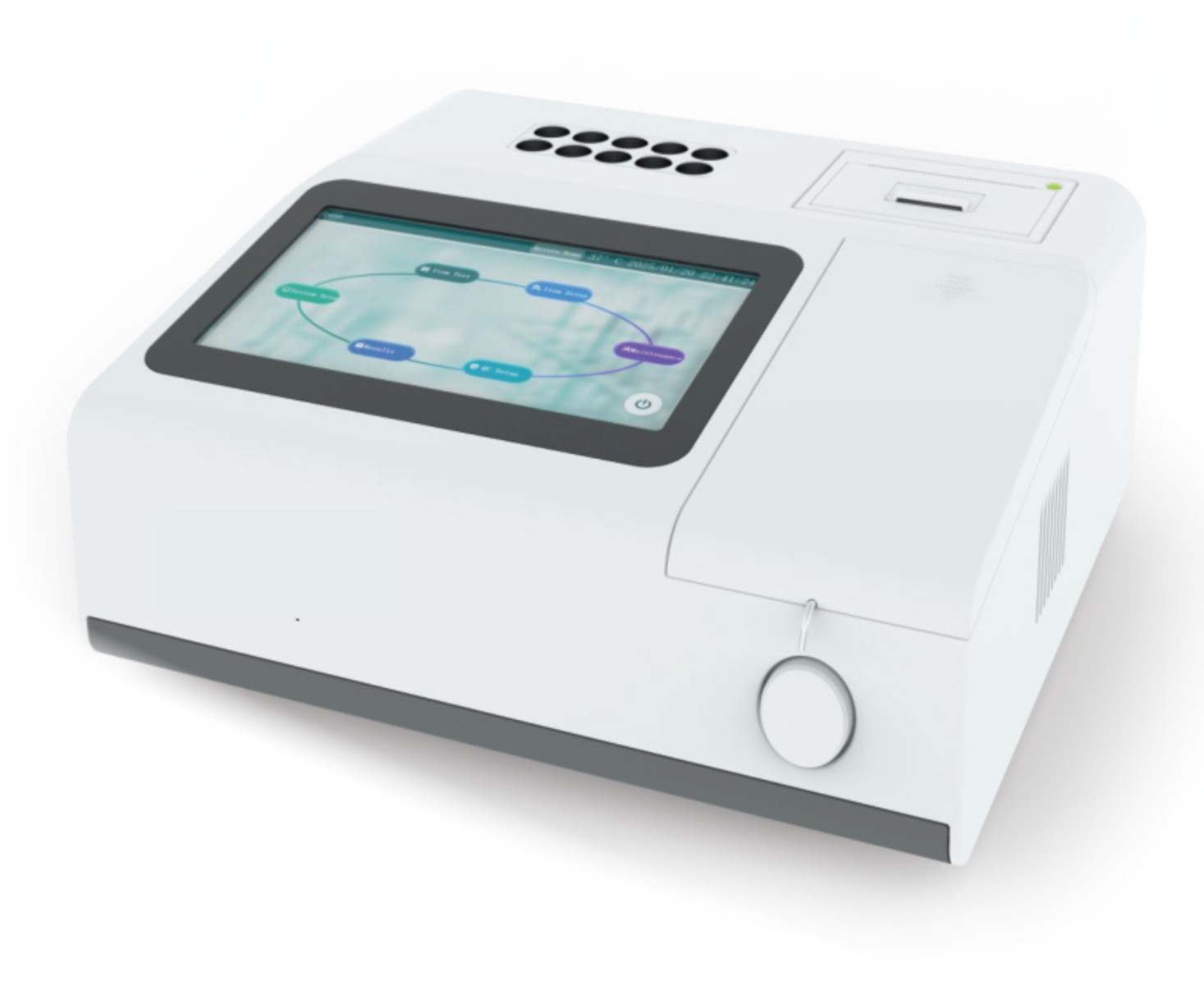

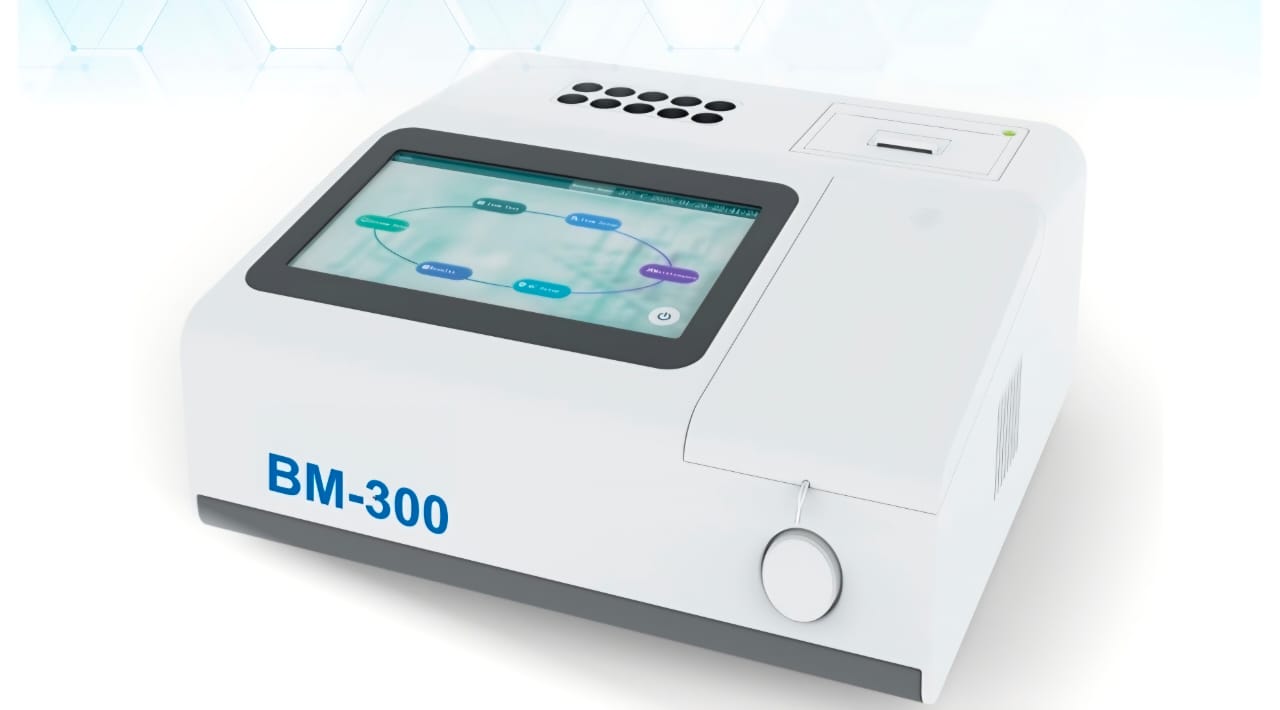

The BM300 Chemistry Analyzer is a fully automated, benchtop biochemistry analyzer engineered to deliver fast, accurate, and efficient results for routine clinical chemistry testing. Designed for small to medium-sized laboratories, diagnostic centers, and hospitals, the BM300 combines advanced photometric technology, intelligent software, and compact design, making it a cost-effective solution for high-quality clinical diagnostics

  • Compact design.
  • Integrated incubators.
  • User-friendly software.
  • Titanium ow cell.

Economic semi-auto biochemistry analyzer with incubators provides basic solution for clinical diagnosis.

Measurement Mode

Three measurement modes: 32uL ow cell, 18uL ow cell (optional), and cuvette

Print

Built in 50 mm thermal printer

Display

7.0-inch capacitive sensitive touch screen display resolution 1024 * 600, IPS full-color high-definition full view angle

Light Source

Halogen lamp 6V/10W, automatic energy-saving sleep mode

Internal Storage

>300 reagent assay, > 200,000 test results

Test Method

Endpoint method, kinetics, two-point kinetics/ fixed time method, simple absorbance test, linear and nonlinear calibration, supporting single/dual wavelength

Range of Absorbance

Display 0.000 4.000Abs, internal resolution 0.00001Abs

Reagent

Customized parameters settting

Usage Environment

Environmental temperature 5-35 C, Humidity 30% -80%

Incubation

Integrated incubator with 10 position

Carryover

<1%

Spectral System

Hard narrowband filter, standard with 6 wavelengths (340nm, 405nm, 505nm,546nm, 578nm, 630nm), 2 optional wavelengths

Power Supply

AC 100-240V, 50/60Hz

External Port

Network interface, 2USB, can be connected to external computer, printer, keyboard and mouse (optional)

Volume Net Weight

L280mm*W240mm*H130mm, 3.5Kg
