CBS-40

Electrolyte Analyzer (CBS-40)

The CBS-40 Electrolyte Analyzer is a fully automatic, high-precision diagnostic instrument designed for the quantitative measurement of electrolytes in human blood, serum, plasma, urine, or other biological fluids. Utilizing ion-selective electrode (ISE) technology, the CBS-40 delivers fast and accurate results for critical electrolytes including sodium (Na⁺), potassium (K⁺), chloride (Cl⁻), calcium (Ca²⁺), lithium (Li⁺), and pH, depending on the configuration.
Compact, robust, and user-friendly, the CBS-40 is ideal for use in clinical laboratories, hospitals, emergency departments, and point-of-care settings where rapid turnaround times and reliability are essential for effective patient management.

SPECIFICATIONS

Method	Multi-Biosensor Technology
Sample Size	60-120ul
Speed	120 tests/hour

Measure scope &Precision

Performance	Detection Range(mmol/L)	Precision(CV)	Resolution(mmol/L)
K+	0.50   20.00	<1.0%	0.01
Na +	15.0   200.0	1.0%	0.1
Cl -	15.0   200.0	<1.0%	0.1
Ca2+	0.10   6.00	1.5%	0.01
ICa2+	0.10   6.00	1.5%	0.01
TCa2+	0.10   6.00	1.5%	0.01
pH	4.00 9.00	<0.5%	0.01

CBS-500

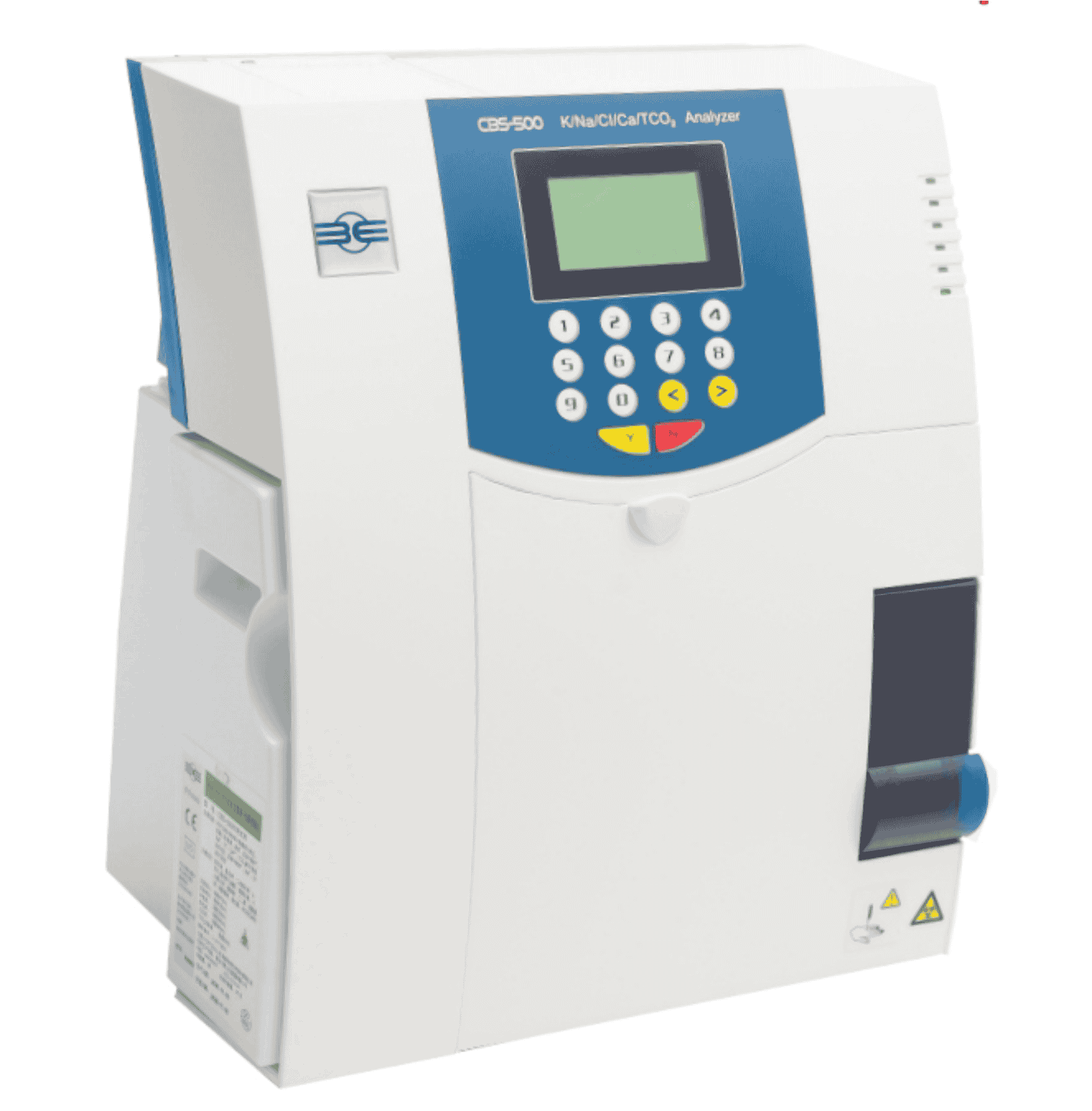

Electrolyte Analyzer (CBS-500)

The CBS-500 Electrolyte Analyzer is a state-of-the-art, fully automated diagnostic instrument engineered for the quantitative measurement of electrolytes in human blood, plasma, serum, and urine. Leveraging advanced Ion-Selective Electrode (ISE) technology, the CBS-500 provides fast, accurate, and reproducible test results for key electrolytes such as sodium (Na⁺), potassium (K⁺), chloride (Cl⁻), as well as calcium (Ca²⁺), lithium (Li⁺), and pH, depending on the model configuration.
Compact, efficient, and user-friendly, the CBS-500 is ideally suited for use in hospitals, clinical laboratories, dialysis centers, emergency rooms, and ICUs, where timely electrolyte analysis is critical to patient care.

SPECIFICATIONS

Method	Multi-Biosensor Technology+Pressure Sensors Technology
Sample Size	60-120ul
Speed	ISE->80 tests/hour, TCO2>-40 tests/hour

Measure scope &Precision

Performance	Detection Range(mmol/L)	Precision(CV)	Resolution(mmol/L)
K+	0.50   20.00	<1.0%	0.01
Na +	15.0   200.0	<1.0%	0.1
Cl -	15.0   200.0	<1.0%	0.1
Ca2+	0.10   6.00	1.0%	0.01
ICa2+	0.10   6.00	1.5%	0.01
TCa2+	0.10   6.00	1.5%	0.01
pH	4.00   9.00	1.0%	0.01
TCO2	5.00   70.00	<3.0%	0.01
